Sycamore

The Sycamore software system is already integrated with PayJunction. Simply enter your PayJunction API Login and Password.

Process Overview

  1. Create PayJunction API Credentials.
  2. Configure Sycamore Software
  3. Process a Test

1. Create PayJunction API Credentials

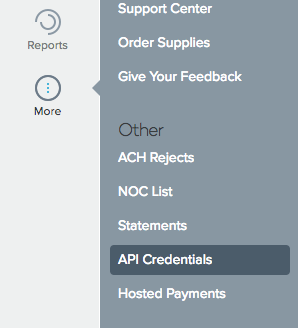

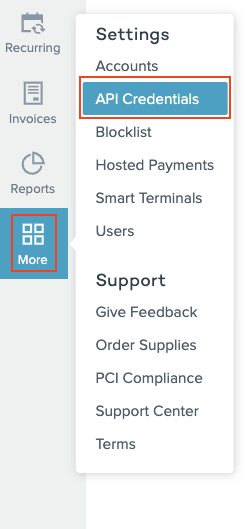

  1. Login to your PayJunction account as an administrator, go to More, then select API Credentials.

  2. In the top-right corner of this view, click the Create New API Credential button.
  3. Enter a First Name, Last Name and an Email Address

    To ensure that report titles lineup properly between PayJunction and Artisan, please use the following naming convention:
    • FIRST NAME: Sycamore
    • LAST NAME: Software
    • EMAIL ADDRESS: noreply@payjunction.com

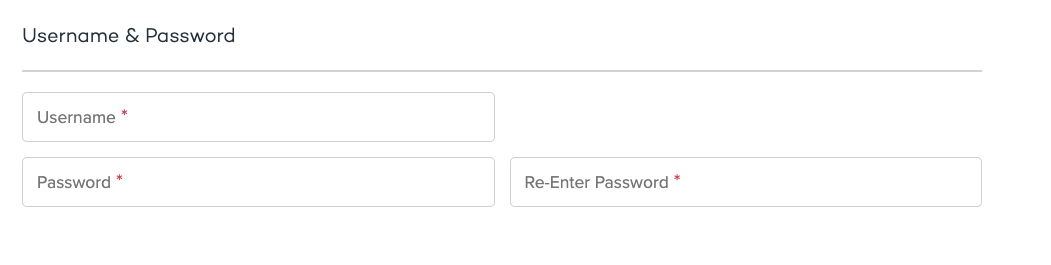

  4. Create a new unique Login and Password.
    For the LOGIN: Use the same First and Last name listed above, without spaces.
    For the PASSWORD: Use at least 8 characters, with at least one uppercase, one lowercase and one number.


  5. Click the Create button at the bottom of the page to save the new API credentials

2. Configure Sycamore Softwaresycamore.png

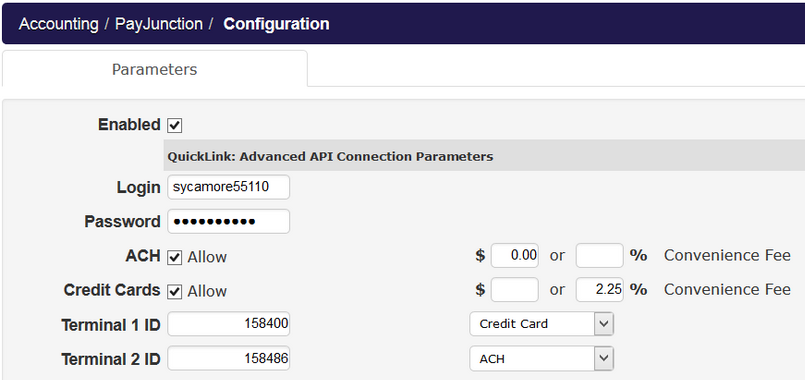

  1. Login to Sycamore as Administrator and navigate here:
    1. Accounting > PayJunction > Configuration > Click Enabled.
  2. Then enter your Login and Password
    1. NOTE: The Login and Password is the API Credentials Login and Password that were created in Step 1, above.
  3. Check the box for ACH, if desired.
  4. Check the box for Credit Cards.
  5. If needed, enter the Convenience Fee - enter the desired amount for credit cards and ACH.
  6. Enter the Terminal IDs - to locate your terminal IDs click the link below.
    How to find my terminal IDs
  7. Then click Update in the upper right corner.

3. Process a Test

  1. Next run a test transaction through Sycamore for $1.00 on a live credit card.
  2. If you see that transaction come through into PayJunction you are done.
  3. If you need assistance running a test transaction in Sycamore please contact Sycamore support.

Please contact Sycamore support if you need further assistance:
