- Power up the Portable Smart Terminal. Plug the charging cradle into power and place the terminal on the cradle. If needed, press the volume button to turn the device on.
The machine will take about 1 to 2 minutes to boot up, then a message indicating a connection error will appear: No Connection. SETUP WIFI. - Press the Hamburger button for at least 5 seconds, until it beeps. Then, double press the Hamburger button again. (This button is located just above the red X button.)
- You will be prompted to enter a password. If you do not have the Smart Terminal password, please contact PayJunction Support at 800-601-0230 option 3.
- Select Setup on the Smart Terminal screen.

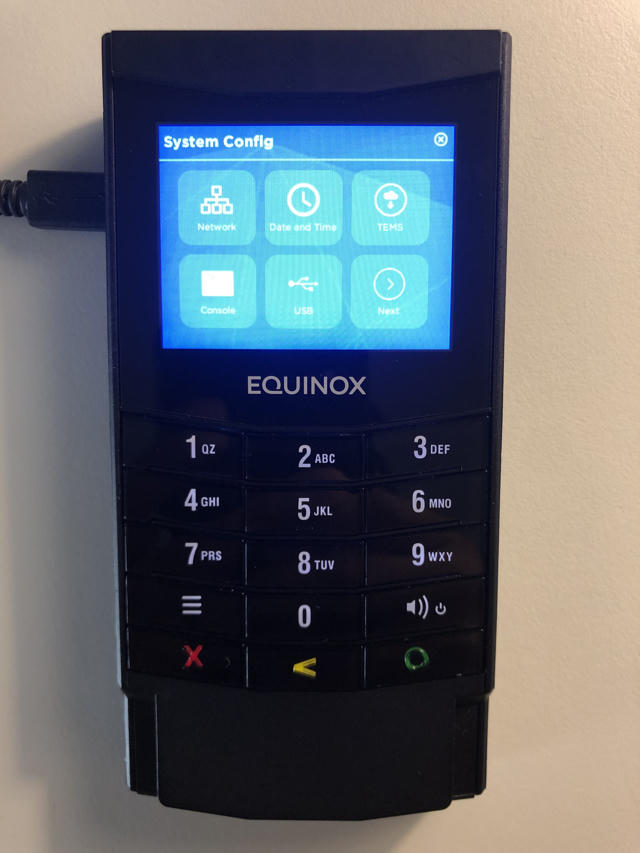

- Select System Config.
Select Network.

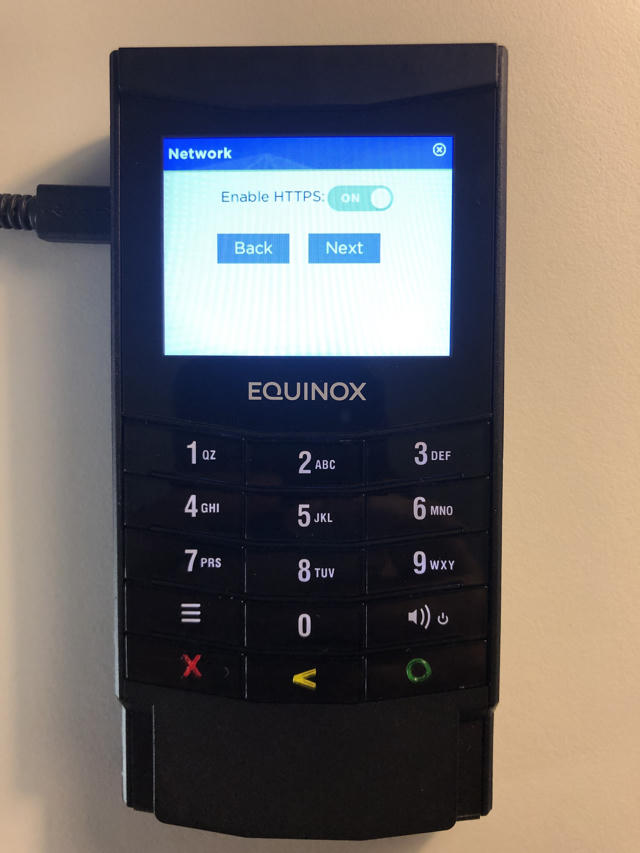

HTTPS should be ON. Press Next.

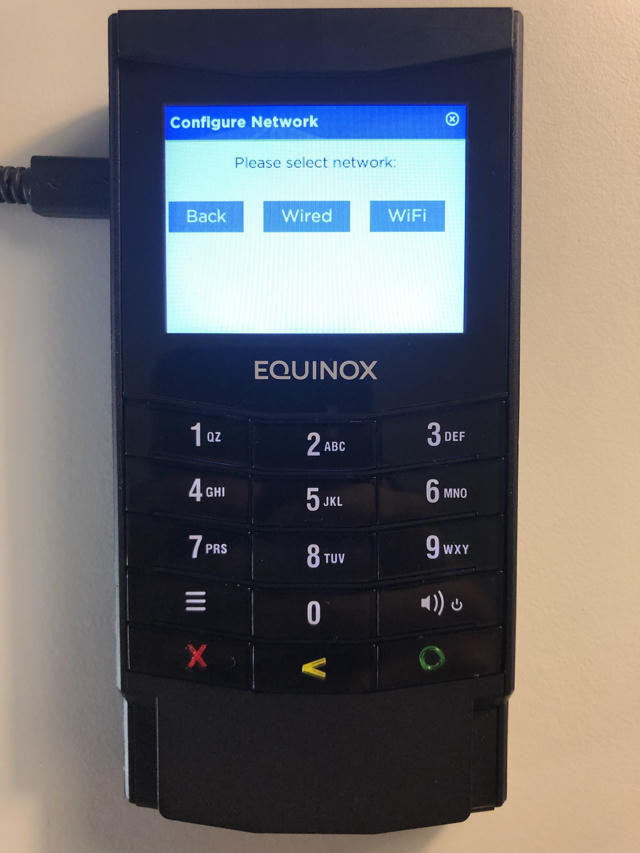

Select the WiFi button.

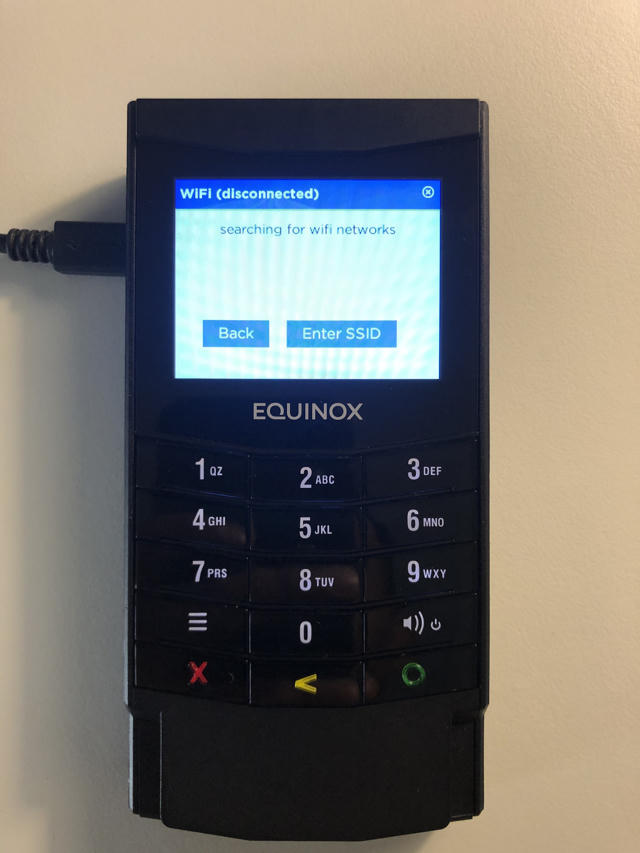

The device will start searching for local WiFi networks. If it takes a while and isn't finding one, press Back and select WiFi again.
If the terminal is already connected to WiFi, click Disconnect.

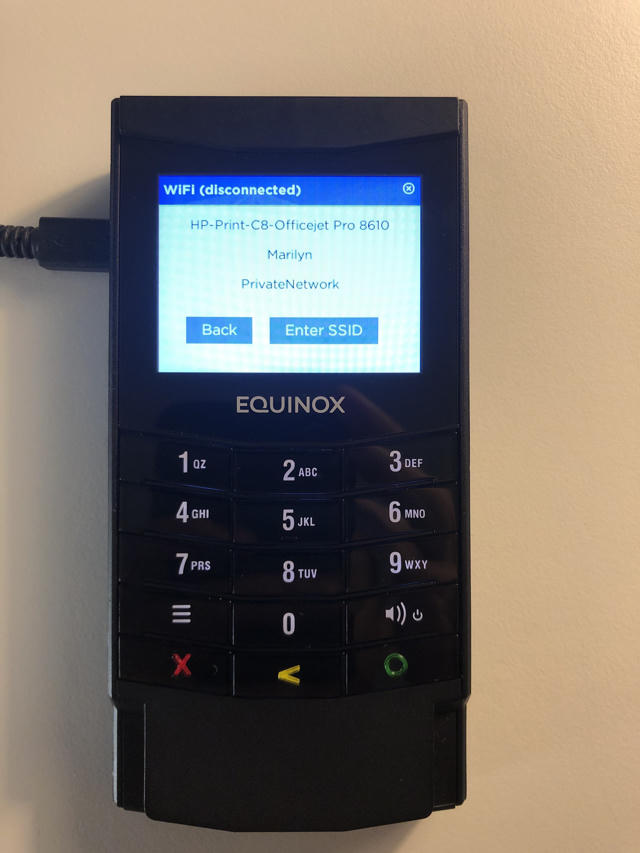

Select the WiFi network.

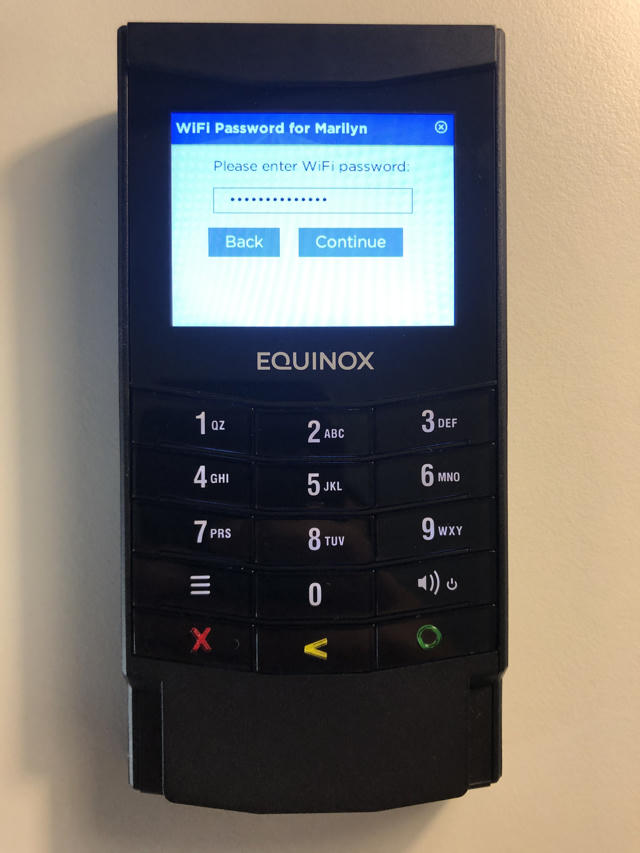

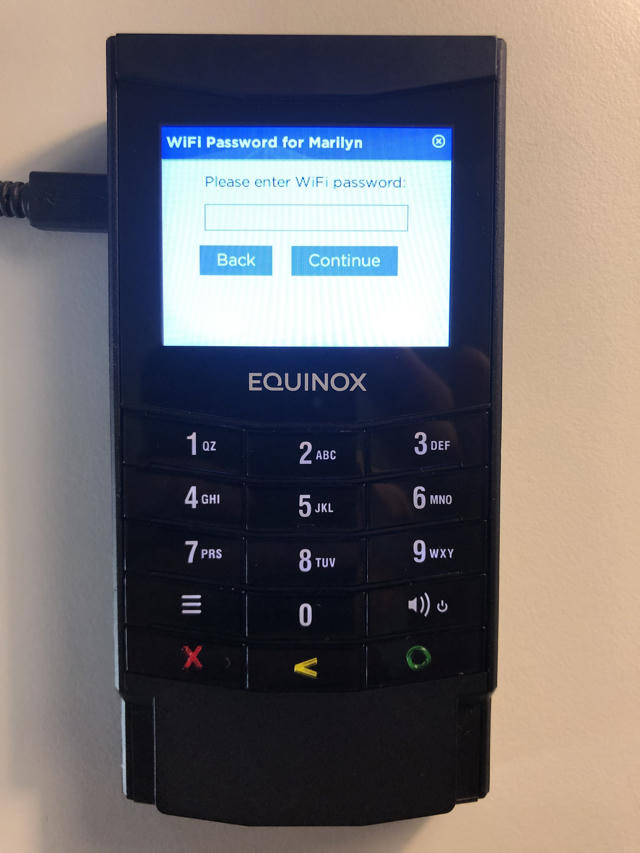

Enter the WiFi Password using the tiny keyboard on the terminal screen. Continue.

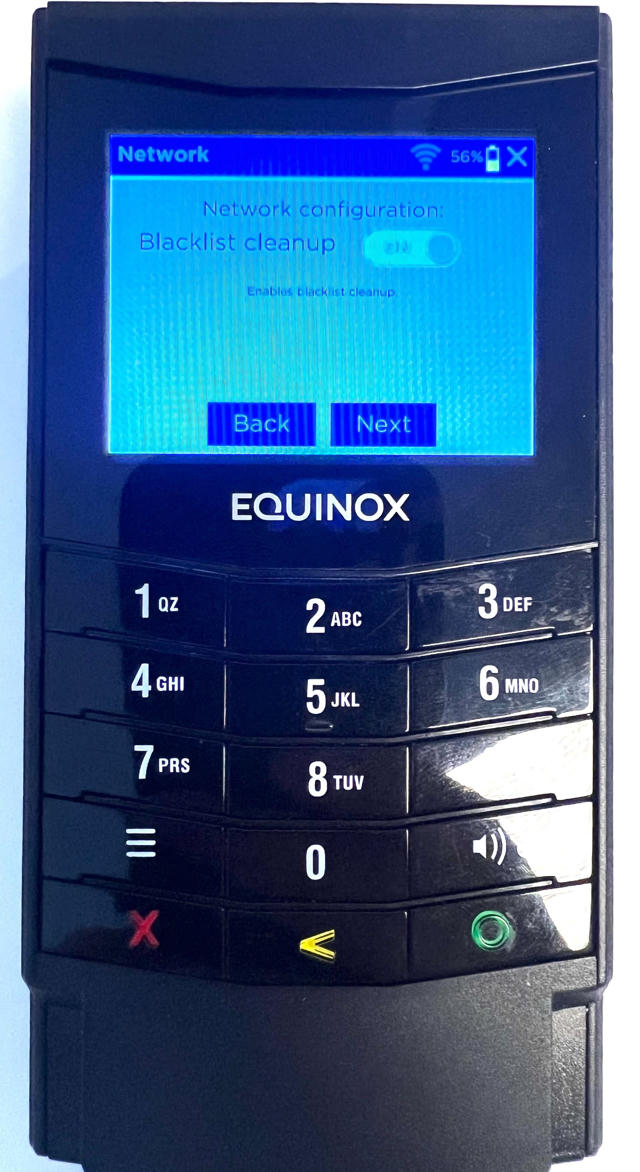

Blacklist cleanup, set to On.

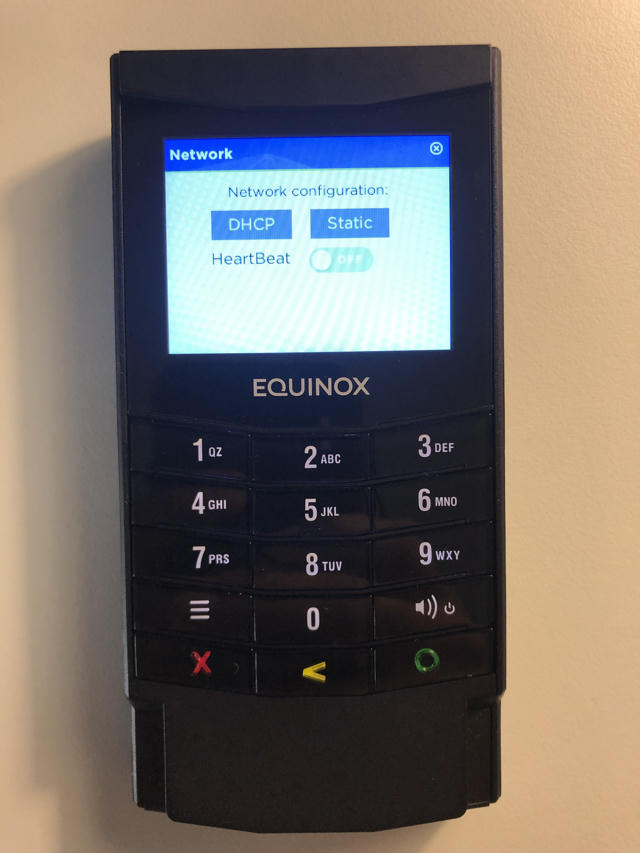

- HeartBeat should be On.

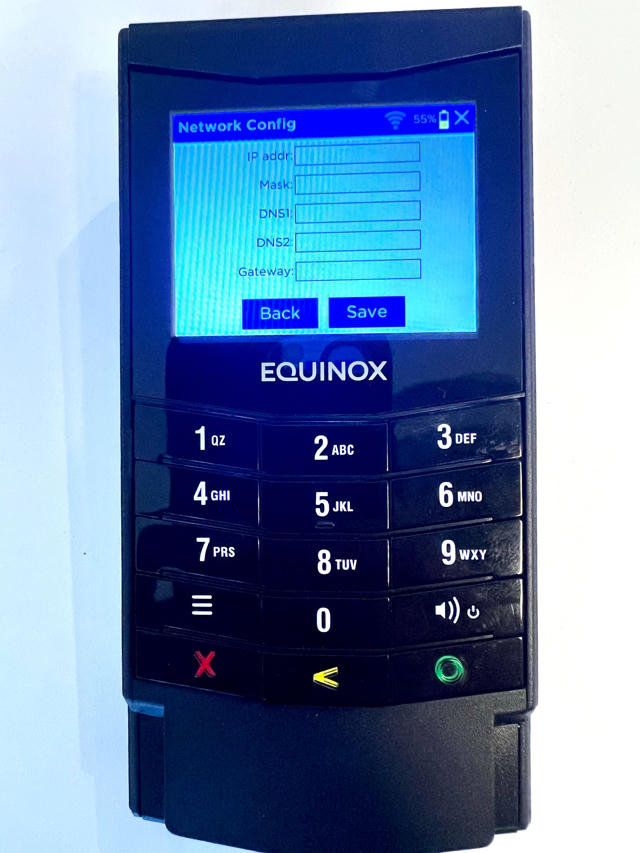

Select Static. Enter the network details:
- The terminal will then attempt to connect to WiFi.
If you get a "Failed to Connect" error, press Continue. Then go back and try again (It's possible the wrong password was entered).

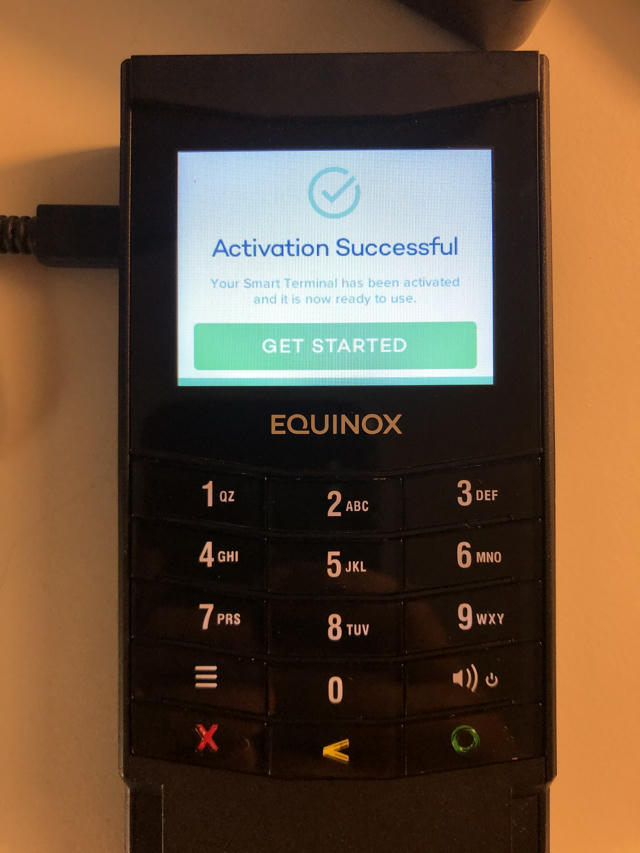

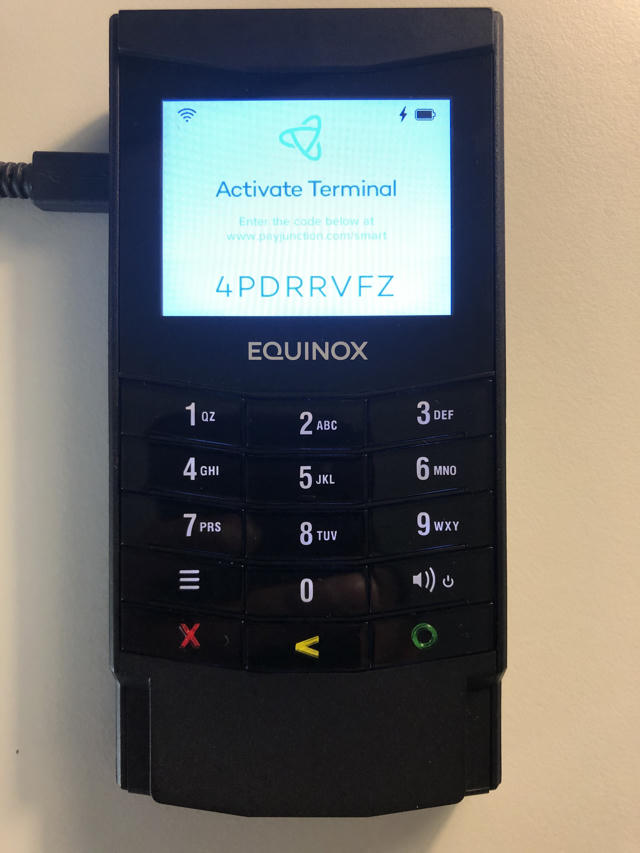

The screen may briefly display a WiFi connection error before connecting. If the terminal needs to be Activated, it will present the Activation Code before going to the PayJunction Home Screen.

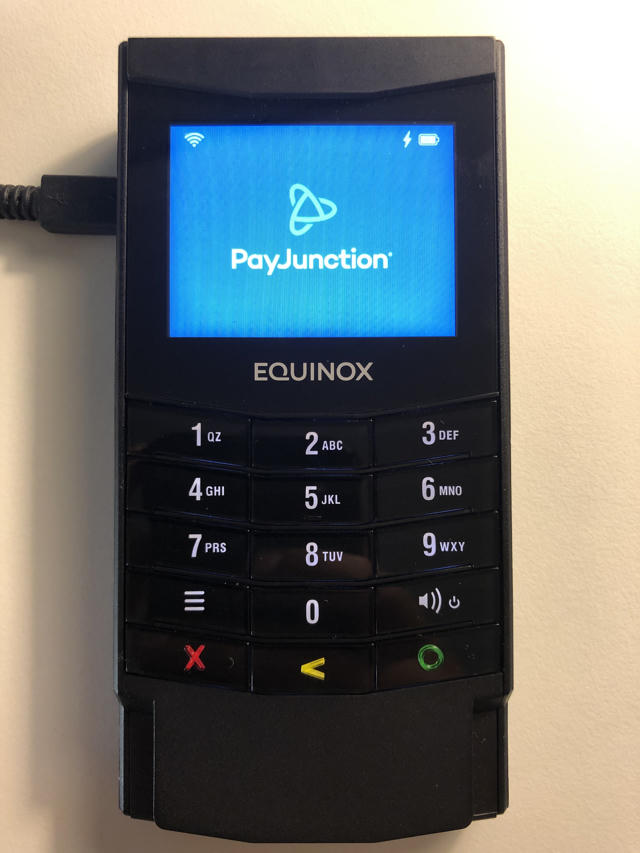

Otherwise, it will go directly to the PayJunction Home Screen.
