ChiroCat


ChiroCat System is already integrated with PayJunction. Simply follow the instructions below to connect ChiroCat with your PayJunction account and Smart Terminal.

PROCESS OVERVIEW

  1. Activate PayJunction Smart Terminal.
  2. Create PayJunction API Credentials.
  3. Create a Hosted Payment page
  4. Call ChiroCat Support

1. ACTIVATE PAYJUNCTION SMART TERMINAL

Instructions to activate PayJunction Smart Terminals can be found here:

2. CREATE PAYJUNCTION API CREDENTIALS

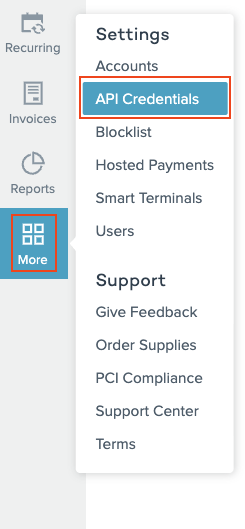

  1. Login to your PayJunction account as an administrator, go to More, then select API Credentials.

  2. In the top-right corner of this view, click the Create New API Credential button.
  3. Enter a First Name, Last Name and an Email Address

    To ensure that report titles lineup properly between PayJunction and ChiroCat, please use the following naming convention:
    • FIRST NAME: "ChiroCat".
    • LAST NAME: nameOfYourBusiness
    • EMAIL ADDRESS: noreply@payjunction.com

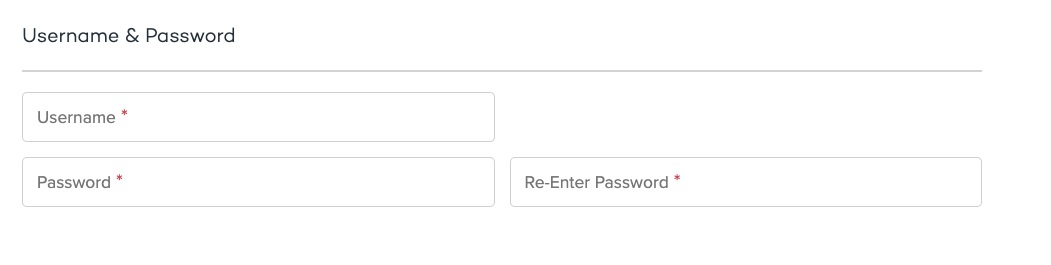

  4. Create a new unique Login and Password.
    For the LOGIN: Use the same First and Last name listed above, without spaces.
    For the PASSWORD: Use at least 8 characters, with at least one uppercase, one lowercase and one number. You will need to provide that password to ChiroCat.

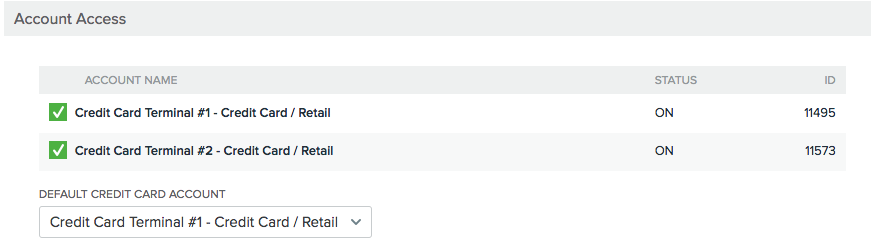

  5. Select the account that will be used by the ChiroCatAlso select the account in the Default Credit Card Account drop-down.
  6. Click the Create button at the bottom of the page to save the new API credentials
  7. Adjust the AVS Security Settings for your API Credentials:
    Click on More > Accounts, then select your account.

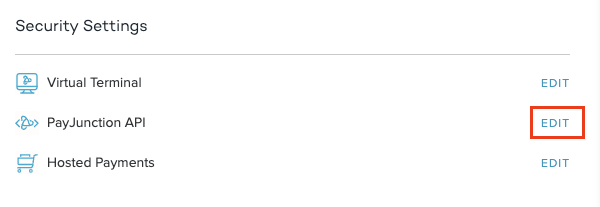

    On the bottom-right side of the screen, go to the Security Settings section, find the PayJunction API, then click the EDIT link:

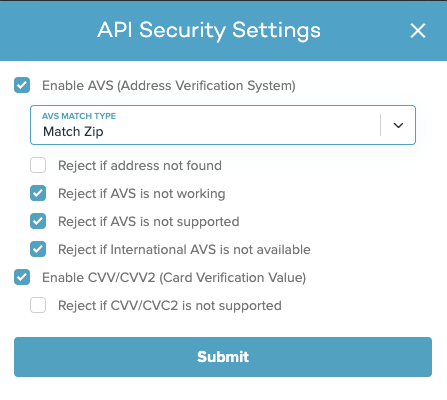

    Adjust your security settings to match the image below:

3. Create a Hosted Payment page

  1. Log into your PayJunction account as an Administrator, go to More, then select Hosted Payments.
  2. On the upper right of the screen click on + New Shop.
  3. For the SHOP NAME: Use "ChiroCat_HP_"+nameOfYourBusiness (HP for Hosted Payment)
  4. Click on the CREATE SHOP button at the bottom of the page.

4. Call ChiroCat Support

Please call ChiroCat support at 801-341-9487 and ask to complete the PayJunction integration. You will be asked to provide:

  • API User ID
  • API Password
  • Hosted Payment ShopID
